Model T Ford Transmission





Known as a Planetary or Epicyclic transmission the main components of the Model T Ford Transmission are the triple gears, transmission drums and clutch discs. The term planetary transmission comes from the similarity of action between the triple gears around the drive gear and that of the planets around the sun.

Read the transmission animation article

Read the transmission bands article

The triple gears are mounted on three short shafts (on which they can rotate) onto the flywheel and revolve with it. This mounting means that whilst the whole assembly spins with the flywheel, they triple gears are able to spin on their own mounting. (just like the planets revolve whilst they orbit the sun)

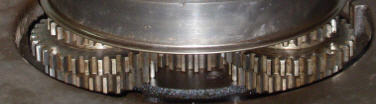

Triple gears mounted on the flywheel

Triple gears mounted on the flywheel

The next part of the assembly is the three transmission drums, one for low speed gear, one for reverse and the drum furthest from the flywheel, the braking drum.

The low speed and reverse drums both are riveted to gear wheel assemblies that are in mesh with the triple gear teeth. The third drum houses the clutch disc assembly, which when clamped by the spring pressure, produces a direct drive to the flywheel. All three drums spin with the flywheel. Their spinning is controlled by the constriction of (originally) woven cotton lined steel bands, the cotton attached to the steel by brass rivets. When one of the pedals is pressed, the corresponding band clamps around the drum, stopping it spinning and in turn, either stopping the drive, or altering the speed of the drive to the rear axle. Confused yet? See the pictures below of the drum assemblies, note the wear in the drum surfaces, caused by the rubbing of the band lining rivets and the crack to the centre of a drum, unfortunately, a weak point in the design. Then read on for a simple explanation of just how this all works!

Drums assembled showing the gears

The drum assembly showing the gears


Drums showing score marks from the band rivets

A scored drum assembly


A drum showing several cracks

A crack in the centre of the drum, renders it useless

So how does it work?


To read a simple explanation and try the interative animation, click this link


All about Transmission Bands

"Which Transmission bands should I use?" is a question often posed by newer Model T drivers and those facing replacement of bands for the first time.

Read more about transmission band types here


Repairing the Hogshead

How to repair the Model T Hogshead



Read how to complete a commonly needed Hogshead (Transmission Cover)repair here.
